Projects/Derrimut

Childcare centre · 2023

Derrimut childcare retaining walls & steel fences

Venald constructed 145 metres of retaining walls and 165 metres of tubular steel fences at 873 Dohertys Road, Derrimut, for MC Building Group and developer Oreana.

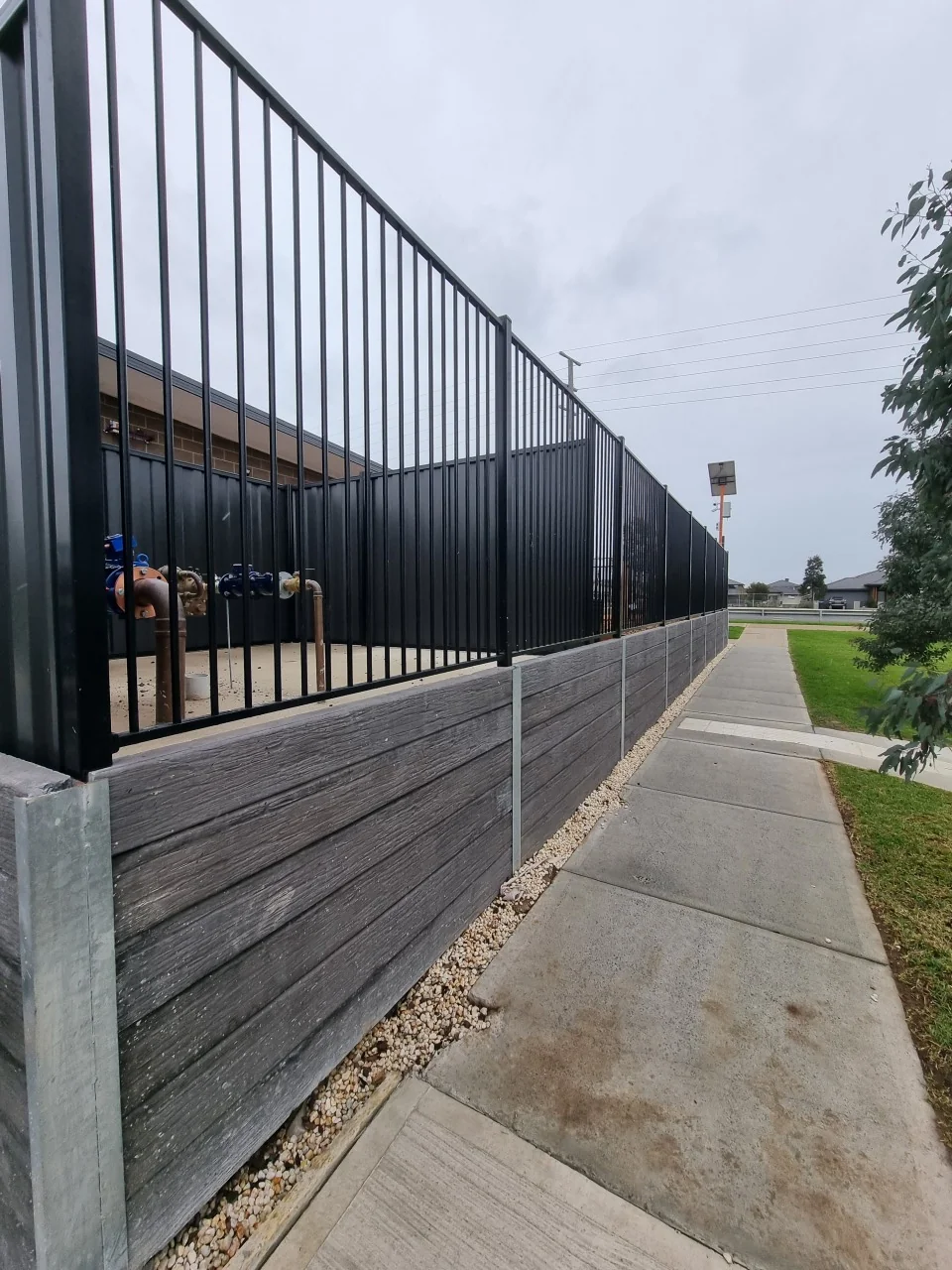

Ashwood timber-look concrete sleeper wall with tubular steel fences along the Derrimut footpath
Ashwood timber-look concrete sleeper wall with tubular steel fences along the Derrimut footpath.
145 mRetaining walls
165 mTubular steel fences
3 weeksConstruction programme

Our scope

What Venald delivered

  • Concrete sleeper retaining walls from 600 mm to 1,200 mm high.
  • Ashwood timber-look sleepers on street-facing walls and Blackwood sleepers internally.
  • Tubular steel fences: 1,200 mm internally at the carpark and 1,800 mm along boundaries.
  • Wall corner coordinated with the plumber and concreter around the grease tank.
  • Engineering computations, certification and behind-wall AGI pipe.

Construction approach

How the work was delivered

Footings and service interfaces

Four days of rock drilling were required for the wall footings. We coordinated the wall corner supporting the grease tank with the plumber and concreter.

Different finishes for different elevations

Ashwood timber-look sleepers were used on the visible street-facing sections. Blackwood sleepers formed the internal walls, with tubular steel fences installed around the carpark, play areas and boundaries.

Project photography

Derrimut, on site

View the wall alignment, finishes and connections. Select a photo to see the full image.

Corner view of Ashwood timber-look concrete sleeper walls with tubular steel fences above in Derrimut
Corner view of Ashwood timber-look concrete sleeper walls with tubular steel fences above in Derrimut.
Ashwood timber-look retaining walls and tubular steel fences beside stairs at the Derrimut childcare centre
Ashwood timber-look retaining walls and tubular steel fences beside stairs at the Derrimut childcare centre.

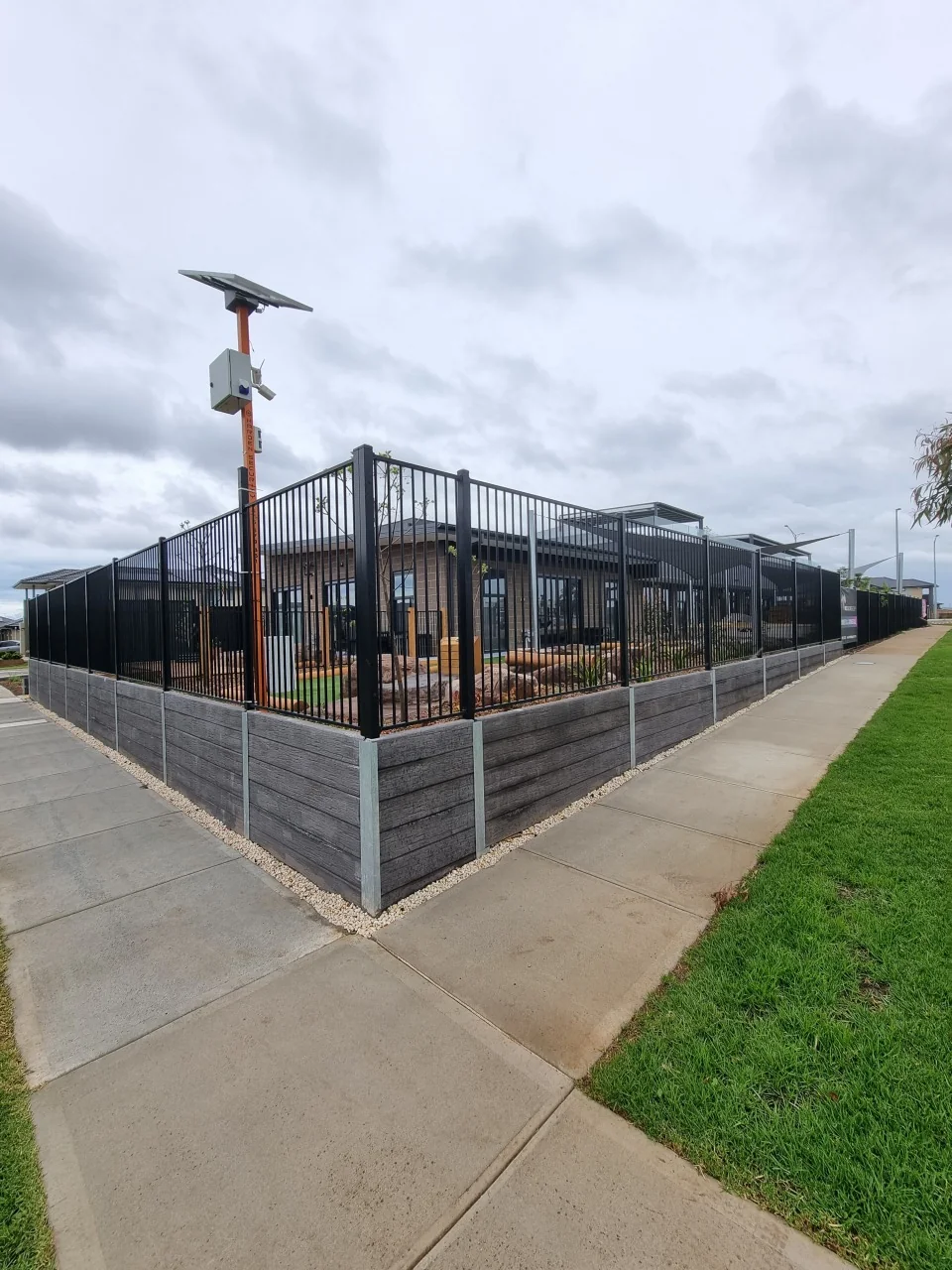

Corner of the Ashwood timber-look retaining wall and tubular fence around the Derrimut childcare play area
Corner of the Ashwood timber-look retaining wall and tubular fence around the Derrimut childcare play area.

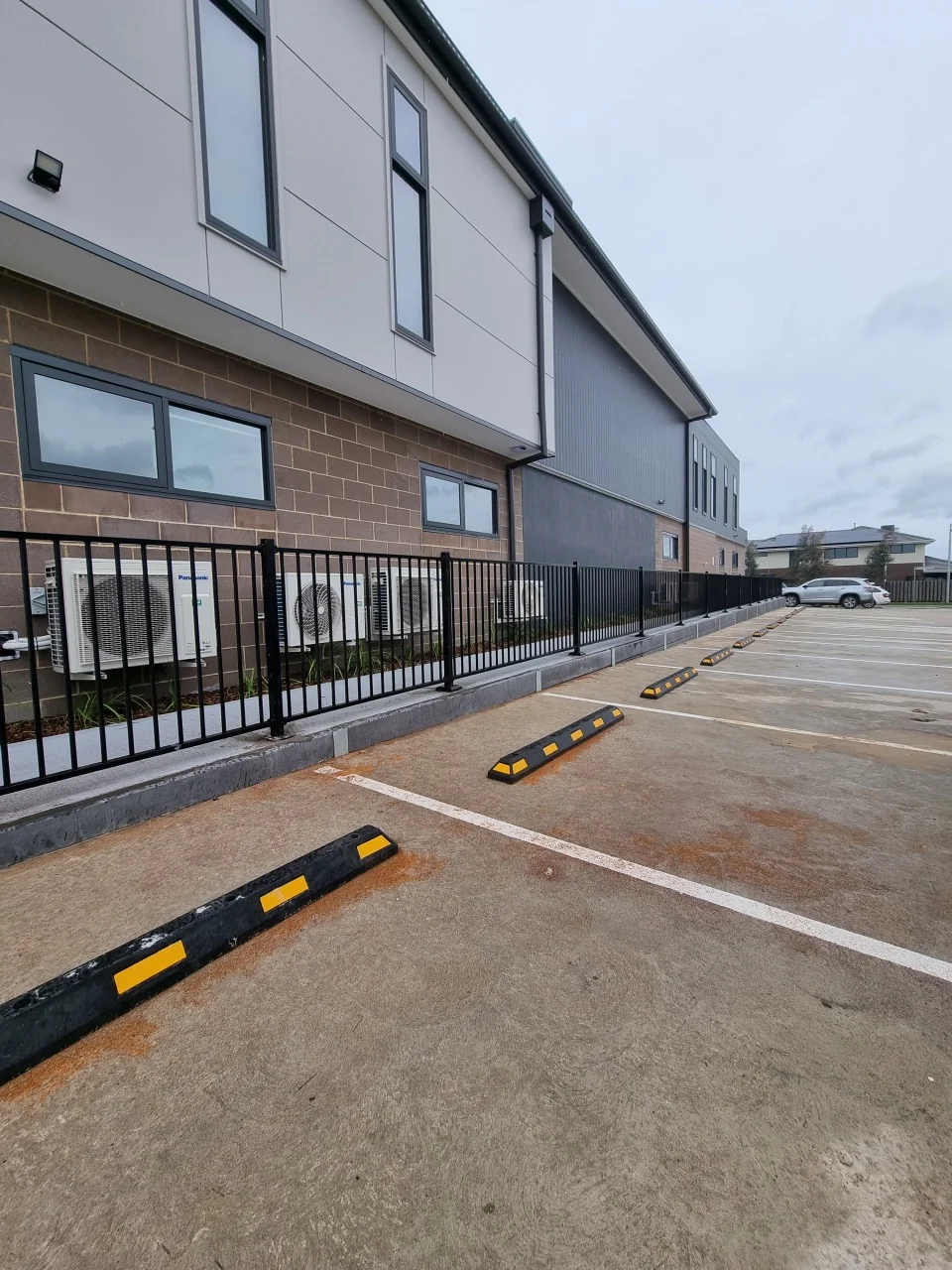

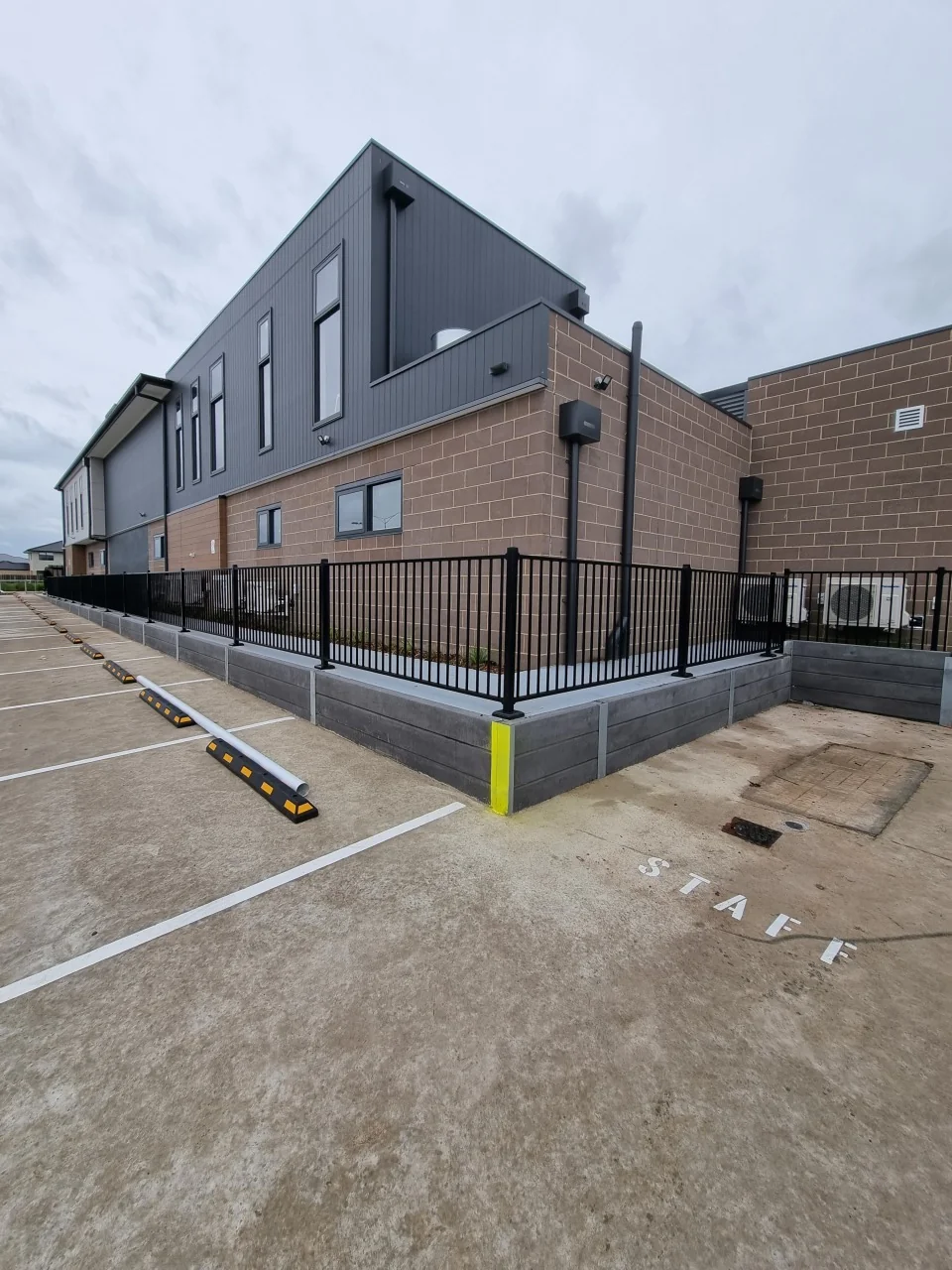

Concrete sleeper wall and tubular steel fence along the Derrimut childcare car park
Concrete sleeper wall and tubular steel fence along the Derrimut childcare car park.
Stairs between Ashwood timber-look concrete sleeper retaining walls at the Derrimut childcare centre
Stairs between Ashwood timber-look concrete sleeper retaining walls at the Derrimut childcare centre.
Materials, construction details & responsibilities

Specifications below describe this project. Wall design, footing depth and post selection are determined for each site.

Sleepers
80 mm Ashwood and Blackwood concrete sleepers from Outback Sleepers Victoria.
Steel posts
Steelworx 100UC14.8 at 2 m spacing.
Behind-wall drainage
AGI pipe, single-layer waterproof membrane and 80 m³ of 20 mm scoria.
Documentation
Builder: preliminary plans. Venald: engineering computations and certification.

Planning a similar project? Explore our commercial retaining walls in Melbourne, concrete sleeper walls and steel fences.
