Projects/Sunbury

Childcare centre · 2025

Sunbury childcare retaining walls & steel fences

Venald delivered 146 metres of retaining walls and 126 metres of black tubular steel fences at the Mitos Street childcare development in Sunbury, working with MC Building Group for developer Oreana.

Concrete sleeper retaining wall with black tubular steel fences above at the Sunbury childcare centre
Concrete sleeper retaining wall with black tubular steel fences above at the Sunbury childcare centre.
146 mRetaining walls
126 mTubular steel fences
3 weeksConstruction programme

Our scope

What Venald delivered

  • Concrete sleeper retaining walls from 600 mm to 1,200 mm high.
  • 1,800 mm black tubular steel fences mounted above the walls on brackets.
  • Ashwood sleepers to the front-facing walls and Blackwood sleepers internally.
  • Engineering computations and certification from the builder’s preliminary plans.
  • AGI pipe, waterproof membrane and scoria behind the walls.

Construction approach

How the work was delivered

Drilling through solid rock

The footing works required eight days of rock drilling with a 14-tonne excavator. We also coordinated the wall construction around nearby easements.

Coordinating walls, fences and finishes

Bracket-mounted fences formed the boundary above the retaining walls. Ashwood sleepers were used on the front-facing sections, with Blackwood sleepers internally to manage material costs. We coordinated with the landscaper at the wall interfaces.

Project photography

Sunbury, on site

View the wall alignment, finishes and connections. Select a photo to see the full image.

Aerial view of the Sunbury childcare centre and perimeter tubular steel fences
Aerial view of the Sunbury childcare centre and perimeter tubular steel fences.

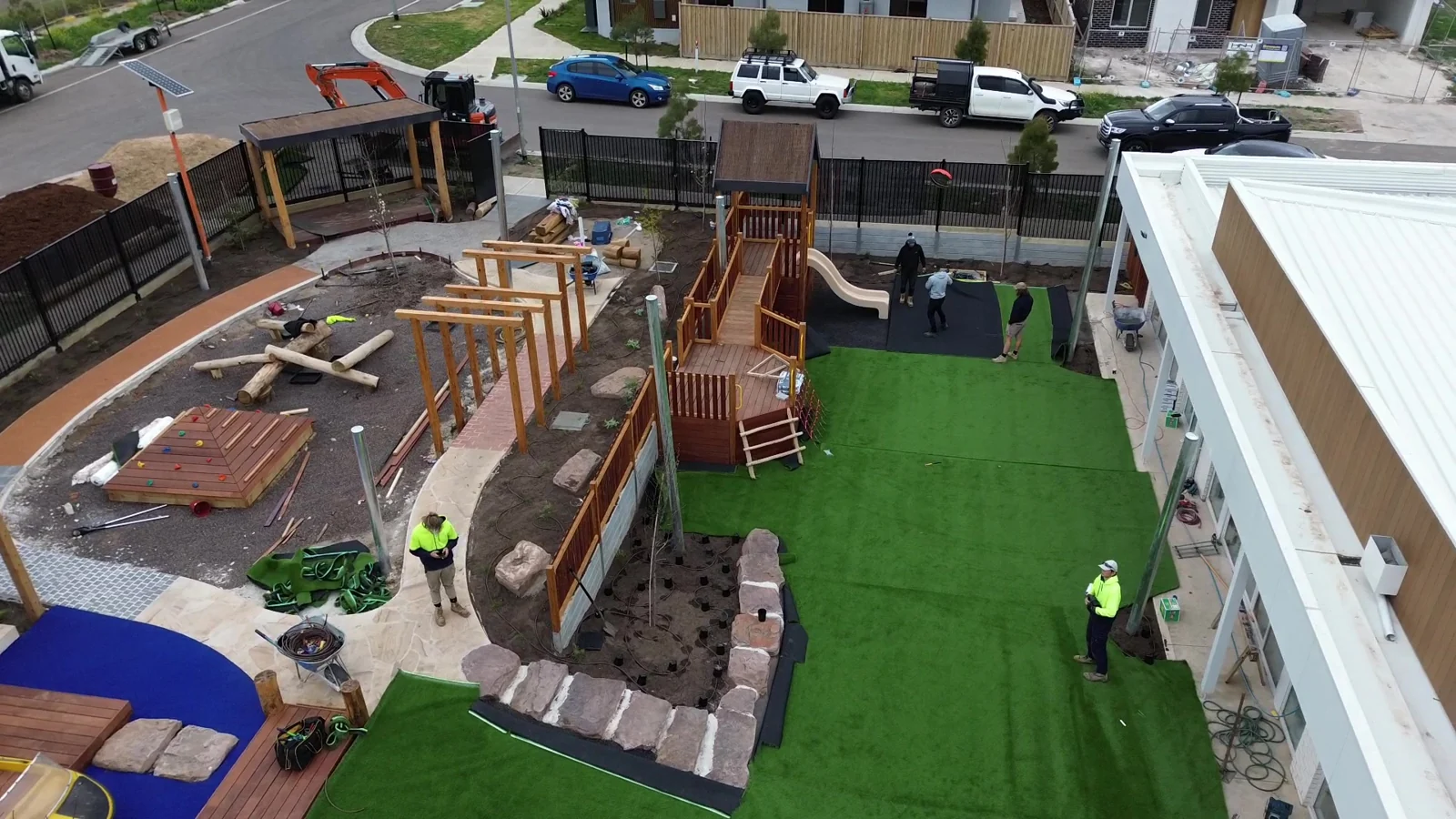

Play area and perimeter fencing at the Sunbury childcare centre
Play area and perimeter fencing at the Sunbury childcare centre.

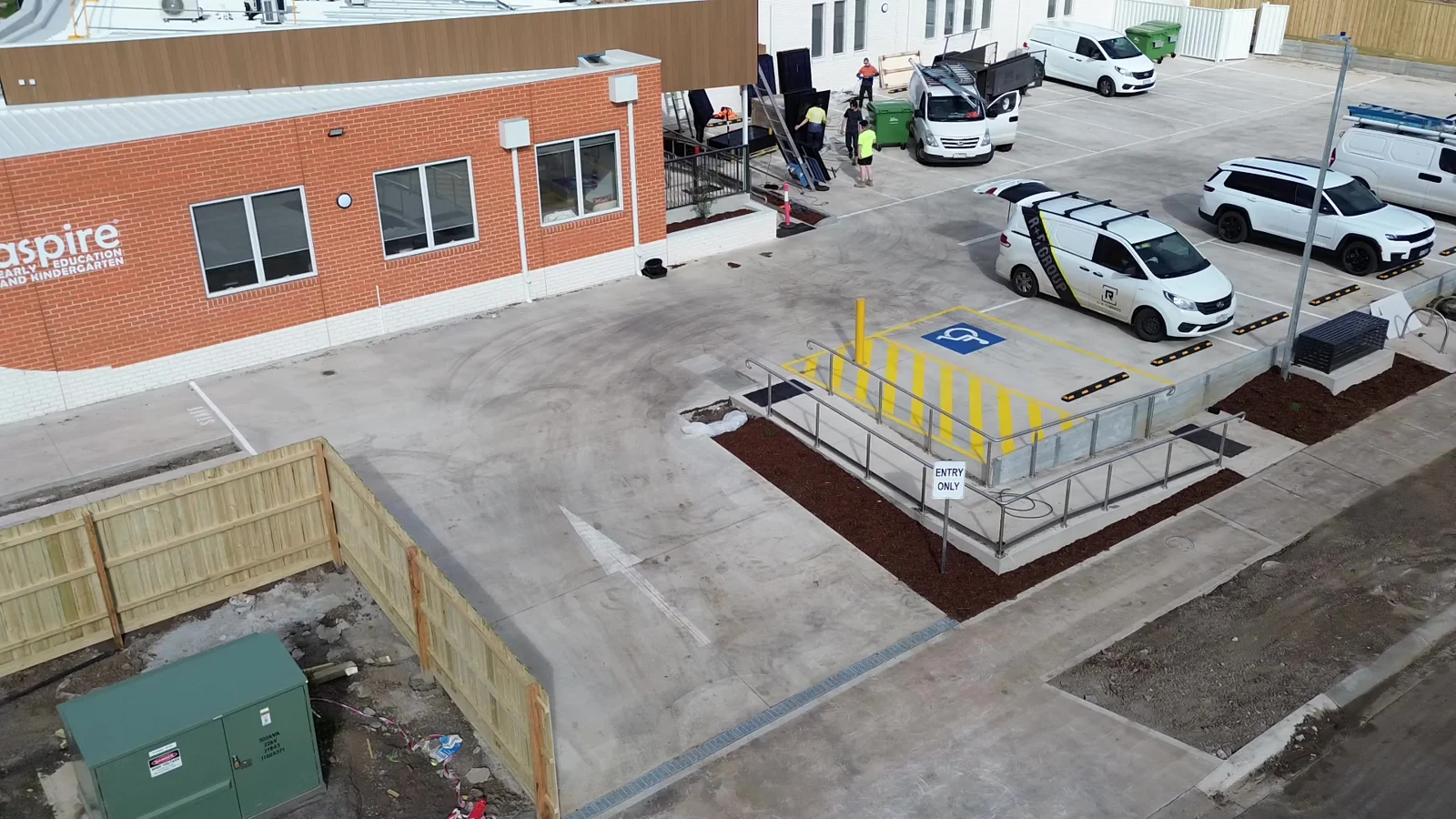

Entrance and forecourt at the Sunbury childcare centre
Entrance and forecourt at the Sunbury childcare centre.

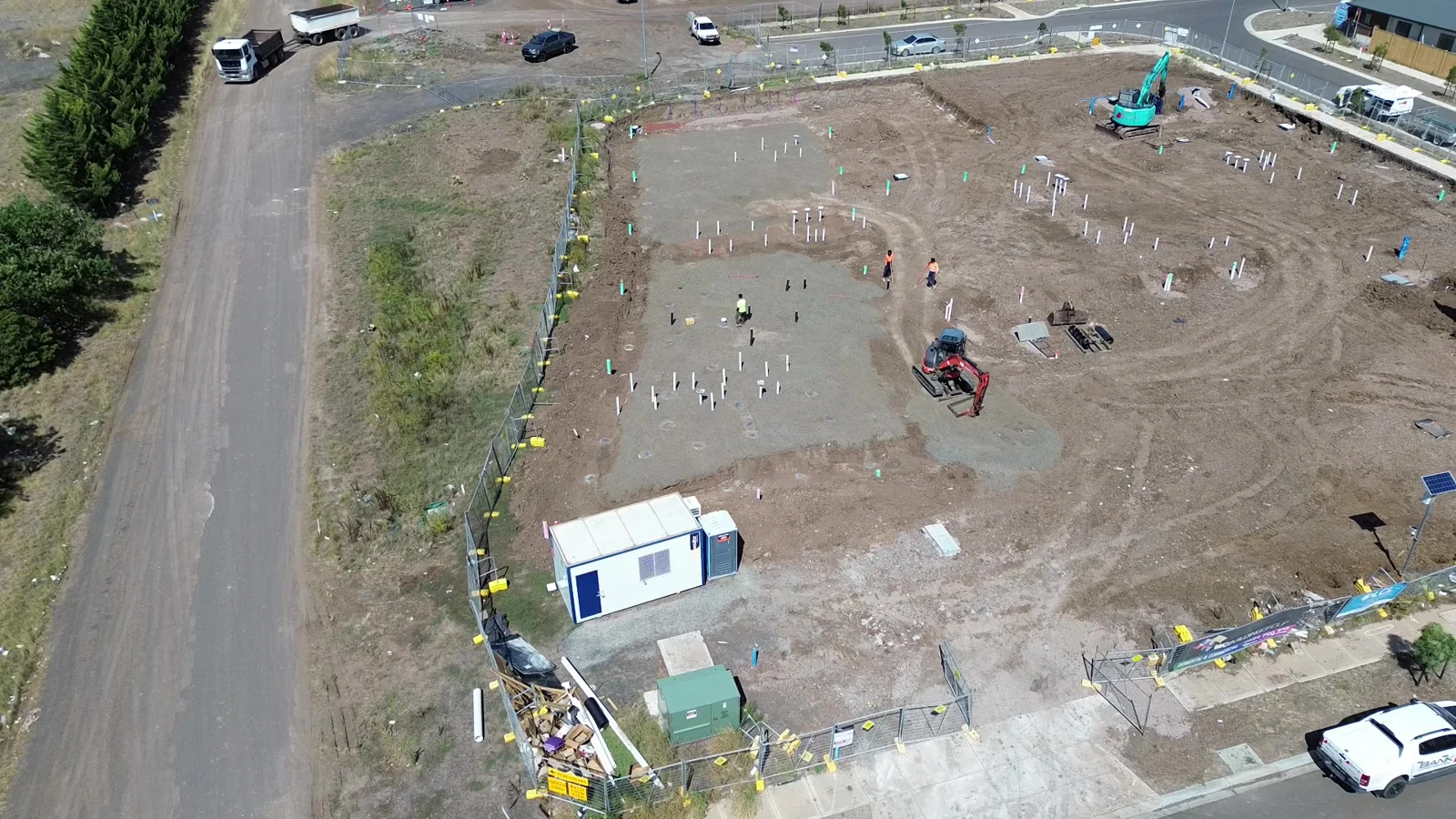

Early site preparation and machinery at the Sunbury childcare development
Early site preparation and machinery at the Sunbury childcare development.
Materials, construction details & responsibilities

Specifications below describe this project. Wall design, footing depth and post selection are determined for each site.

Sleepers
80 mm Ashwood and Blackwood concrete sleepers from Outback Sleepers Victoria.
Steel posts
Steelworx 100UC14.8 at 2 m spacing.
Behind-wall drainage
AGI pipe, single-layer waterproof membrane and 65 m³ of 20 mm scoria.
Documentation
Builder: preliminary plans. Venald: engineering computations and certification.

On site

Project footage

Sunbury childcare retaining walls and fencing from finish to start.
